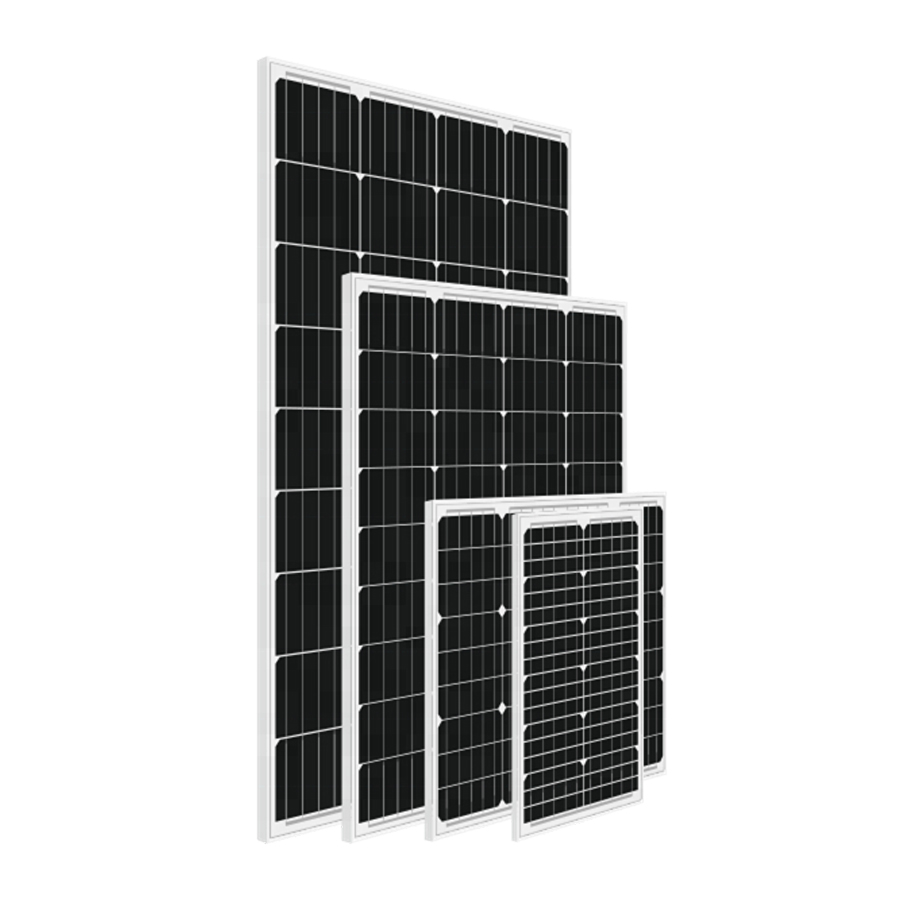

ITEM NO. |
KD-M30 |
|
Mono |
Mono |
|
Maximum power (Wp) |
30w |
|
Maximum power voltage (V) |
17.90 |
|
Maximum power current (A) |
1.23 |
|
Open circuit voltage (V) |
22.0 |
|
Short circuit current (A) |
1.58 |
|
Number of cells (Pcs) |
36 pcs |
|
Size of module (mm) |
705*550*25mm（125*70） |
|
Maximum system voltage (V) |
DC 1000V |
|
Temperature coefficients of Isc (%) |
0.04%/ ℃ |
|
Temperature coefficients of Voc (%) |
-0.35%/ ℃ |
|
Temperature coefficients of Pm (%) |
-0.5%/ ℃ |
|
Temperature coefficients of Im (%) |
+0.1/ ℃ |
|
Temperature coefficients of Vm (%)） |
-0.38/ ℃ |
|
Temperature Range |
-40℃～+80℃ |
|
Tolerance Wattage (e.g. +/-3%) |
+3% |
|
Surface Maximum Load Capacity |
60m/s(200kg/sq.m) |
|
Allowable Hail Load |
steel ball fall down from 1m height |
|
Weight per piece (kg) |
4.0KG |
|
Cell Efficiency (%) |
＞14.35% |
|
Module Efficiency (%) |
＞11.72% |
|

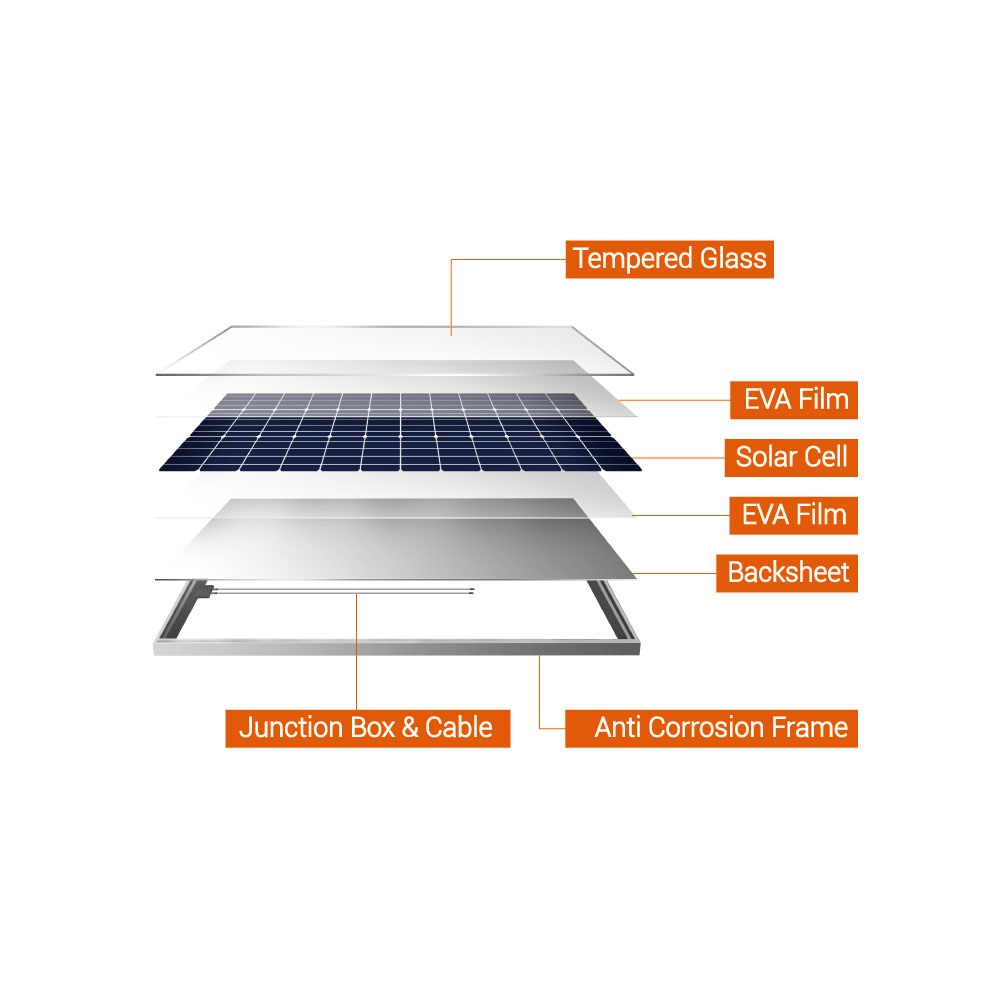

Frame (Material, Corners, etc.) |
Aluminum |
|
Standard Test Conditions |
AM1.5 1000mW/cm2 25’C |
|
Warranty |
12 years product warranty and 25 years warranty on power output |
